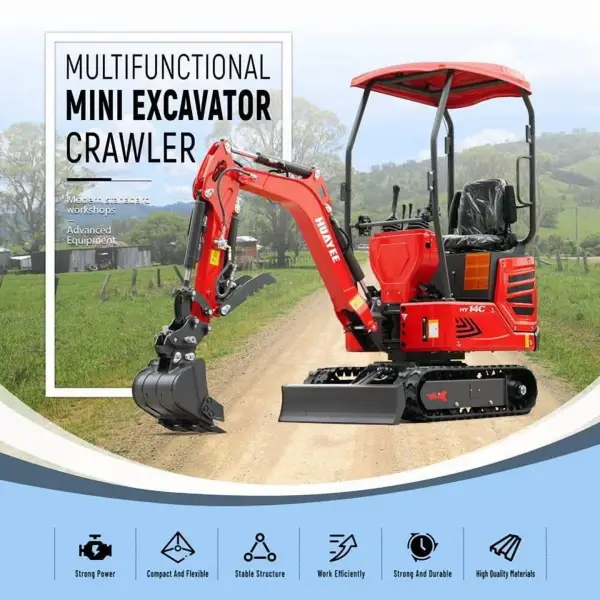

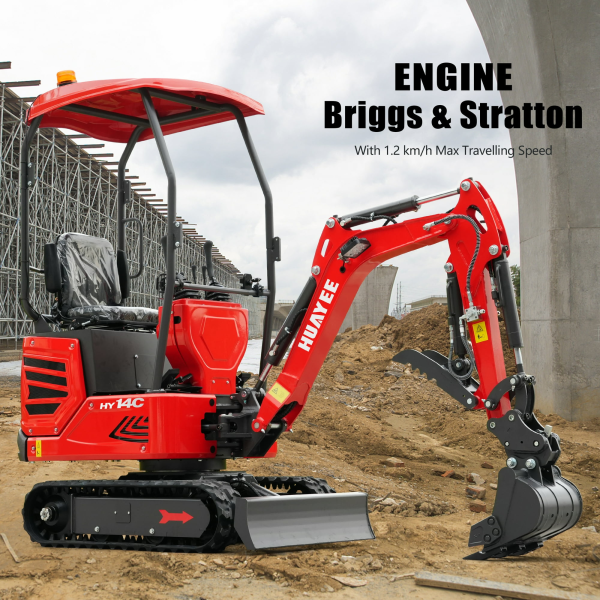

The HUAYEE HY14C is where compact design meets serious excavation muscle. Tipping the scale at 1,402 kg (3,091 lbs), this 1.4-ton machine is powered by the renowned Briggs & Stratton XR2100 13.5HP gasoline engine — one of the most trusted small engines in the industry. With a factory-installed hydraulic thumb, an independent side swing boom with up to 90° lateral deflection, and a semi-automatic quick coupler for instant attachment changes, the HY14C is engineered to handle more tasks, in tighter spaces, with more precision than any machine in its price range. Real-world operators have confirmed it digs past 5 feet deep in demanding field conditions.
Key Features

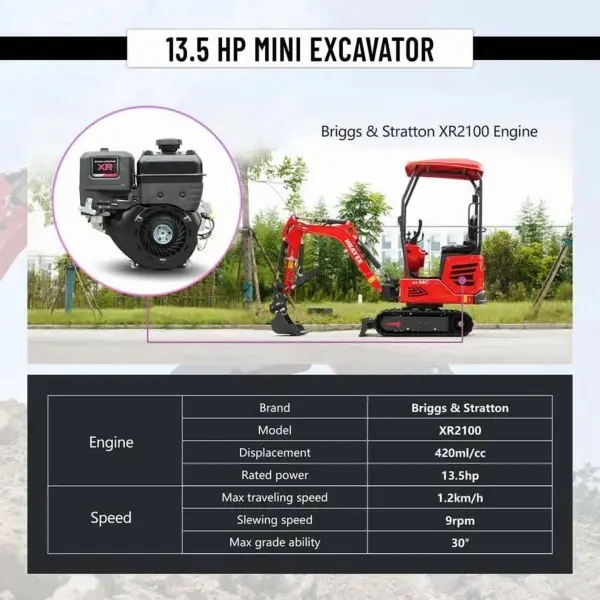

✅ Briggs & Stratton XR2100 13.5HP Engine — 420cc American-engineered gasoline engine, renowned for low-noise operation, fuel efficiency, and long service life
✅ Independent Side Swing Boom (70°–90°) — Swing the boom laterally left and right without rotating the entire machine — essential for digging along walls, foundations, and fence lines
✅ Factory Hydraulic Thumb Clamp — Machine-designed hydraulic thumb with full adjustability and strong clamping force for handling rocks, logs, pipes, and irregular material
✅ Semi-Automatic Quick Coupler — Swap attachments in seconds — buckets, augers, breakers — no manual pin pulling required
✅ 65″ Max Digging Depth — Consistent performance for utility lines, drainage, irrigation, and footings
✅ 111″ Max Digging Height — One of the tallest dump heights in its class for direct loading into truck beds
✅ 118″ Max Ground Digging Radius — Wide horizontal reach that minimizes machine repositioning on site
✅ 16 MPa Hydraulic System — High-pressure hydraulics delivering 17.6 L/min flow for smooth, responsive multi-function control
✅ 7″ Wide Rubber Tracks — Excellent traction on soft terrain with minimal lawn and surface damage
✅ Cup Holder + Mobile Phone Holder — Operator comfort features built standard into the cab
✅ Front Dozer Blade — Sturdy front blade for grading, backfilling, and machine stabilization during digging
Technical Specifications
Specification
Value
Operating Weight
1,402 kg / 3,091 lbs
Engine Brand
Briggs & Stratton XR2100
Rated Power
13.5HP
Engine Displacement
420 cc
Fuel Type
Gasoline
Fuel Tank Capacity
6.6 L / 1.6 gal
Max Digging Depth
1,670 mm / 65 in
Max Digging Height
2,840 mm / 111 in
Max Ground Digging Radius
3,020 mm / 118 in
Swing Boom Deflection
70°–90° Left & Right
Bucket Capacity
0.02 m³
Hydraulic Working Pressure
16 MPa
Hydraulic Oil Flow
17.6 L/min
Hydraulic Oil Tank
15 L / 4 gal
Track Material
Rubber
Track Length
1,200 mm / 47 in
Track Width
180 mm / 7 in
Machine Dimensions (L×W×H)
2,362 × 940 × 2,337 mm / 93 × 37 × 92 in
What’s in the Box
1× HUAYEE HY14C Mini Excavator
1× Standard Digging Bucket
1× Hydraulic Thumb Clamp
1× Semi-Automatic Quick Coupler
1× Front Dozer Blade
1× ROPS Canopy Frame
1× Cup Holder & Mobile Phone Holder
1× Tool Kit & Owner’s Manual
Built For
Job Type
Application
🏗️ Residential Construction
Foundation prep, confined-site digging, wall-adjacent trenching
